IAC-A5D3X-CM
High-performance industrial chips for embedded devices. Stable operation & full specifications. Factory direct supply with favorable prices. Bulk orders are welcome, feel free to contact us!
Relief Ceramic Bowls Parameters:
| Manufacturer | Lianyuan |
|---|---|
| Product Type | Bowls |
| Pattern | Diamond Relief Texture & Floral Pattern |
| Color | Pink, Yellow, Green, Blue |
| Material | Durable Porcelain |
| Craftsmanship | Embossed, In-glazed Decal |
| Application | Microwave and Dishwasher Safe, Oven Safe |
| Custom | Color/Size/Logo/Package |
Product Description
| Parameter | Specification | Item | Specification |
|---|---|---|---|
| CPU | ATMEL SAMA5D34 | Architecture | ARM Cortex A5 |
| Main Frequency | 536MHz | RAM | 256MB DDR2 SDRAM |
| Flash | 256MB NandFlash, 2MB DataFlash | Ethernet Port | 2x 10/100Mbps industrial Ethernet, with ACT and LINK indicators |
| UART | 5x RS232 serial ports, including: 1x debug serial port, 2x RS232 shared with RS485 | USB | 3x USB2.0, including: 1x USB2.0 DEVICE, 2x USB2.0 HOST |
| CAN | 1x CAN interface, supports CAN2.0 protocol | Display Interface | 18-bit TFT-LCD (compatible with 24-bit), resolution up to 2048×2048; VGA interface for connecting to general monitors |
| Audio Interface | Stereo audio output, MIC audio input | Input Interface | 8×8 matrix keyboard (usable as I/O); 4-wire resistive touch screen interface; AD input interface |
| Expansion Interface | EBI bus interface; USB_WIFI interface; PWM interface; SPI interface; I2C interface | Storage Interface | 1x SD card interface |
| Other Equipment | Reset circuit, watchdog circuit, real-time clock, buzzer, JTAG interface | Power Input | +12V power supply, supports wide voltage input of +6V~+23V |

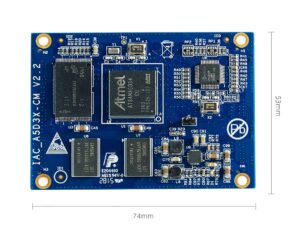

| Core Board Size | 74mm×53mm, 8-layer board with high-precision gold immersion process | Baseboard Size | 160mm×110mm, 4-layer board with high-precision gold immersion process |
| Power Consumption | Core board <1W; Whole board ≤2W | Operating Temperature | -20°C ~ +70°C, -40°C~+85°C (optional) |
| Operating Humidity | 5% to 95%, non-condensing | Operating System | Linux |
